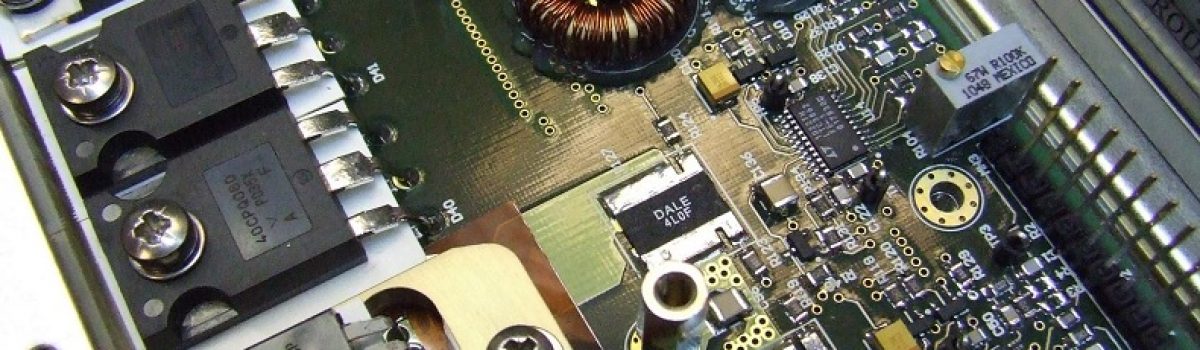

High-Voltage Power Supplies
For radar, electronic warfare and communications applications, CPI EDB's high-voltage power supplies:
Featuring:
- Ultra-low phase noise
- High electrical efficiency
- Excellent thermal management
- Switched mode technology
- Innovative design
- Modular capacitor charging power supplies: 20 kW to 100 kW (average); 6 kV to 65 kV
Benefits:
- Lightweight and compact
- High voltage encapsulation
- Easy maintenance
- Full MIL spec operation
CPI EDB High-Voltage Power Supplies Capability Table
Please contact CPI EDB to assist you with your high-voltage power supply needs.
[email protected]
| Voltage | Power Capability (W) | Peak Power |
| 5000 - 40,000 | 500 - 6000 | DC, Single Phase, Three Phase |
High-Voltage Power Supplies
| Product Description | Max Voltage (V) | Prime Power (Hz) | Pulse Length (µs) | Model Number |
| 100 W HPSU PTM6263 | 15000 | 115 VAC, 3-Ph 400 Hz | 40 | PTM6263 |
| 1000 W HPSU PTM6395 | 15000 | 115 VAC, 3-Ph 400 Hz | 25 | PTM6395 |
| 1000 W HPSU PTM6597 | 15000 | 115 VAC, 3-Ph 400 Hz | 10 | PTM6597 |
| 1000 W HPSU PTM6611 | 9000 | 100 VDC | - | PTM6611 |
| 1100 W HPSU PTM8815 | 20000 | 66 VAC, 3-Ph 60 Hz | 50 | PTM8815 |
| 1100 W HPSU PTM8825 | 20000 | 160 VDC | 50 | PTM8825 |
| 1500 W HPSU PTM6259 | 11000 | 115 VAC, 3-Ph 400 Hz | - | PTM6259 |
| 1500 W HPSU PTM6288 | 15000 | 115 VAC, 3-Ph 400 Hz | 50 | PTM6288 |
| 1500 W HPSU PTM6688 | 15000 | 115 VAC, 3-Ph 400 Hz | 50 | PTM6688 |
| 1500 W HPSU PTM7599 | 15000 | 115 VAC, 3-Ph 400 Hz | 100 | PTM7599 |
| 1500 W HPSU PTM7721 | 15000 | 115 VAC, 3-Ph 400 Hz | 150 | PTM7721 |
| 500 W HPSU PTM8103 | 5000 | 270 VDC | - | PTM8103 |
| 6000 W HPSU PTM9755 | 35000 | 115 VAC, 3-Ph 400 Hz | 120 | PTM9755 |
