Ring-Loop TWTs
C-Band
CPI EDB - Beverly Microwave Division manufactures L, S, and C-band ring loop travelling wave tubes for
ground based and shipboard tracking radars and commercial weather radars.
Featuring:
- Ring-loop circuit design
Benefits:
- Proven products at L-Band, C-Band, S-Band, Ku-Band & X-Band
- Long life
- Reliable operation
Please contact CPI EDB to assist you with your ring-loop TWT needs;
[email protected]
C-Band
| Product Description | Frequency (Min) (GHz) | Frequency (Max) (GHz) | Peak Power Output (kW) | Pulse Width (µs) | Duty Cycle | Model Number |
| C-Band TWT VTC5260H1 | 5.40 | 5.90 | 6.00 | 20 | 1.8 | VTC5260H1 |

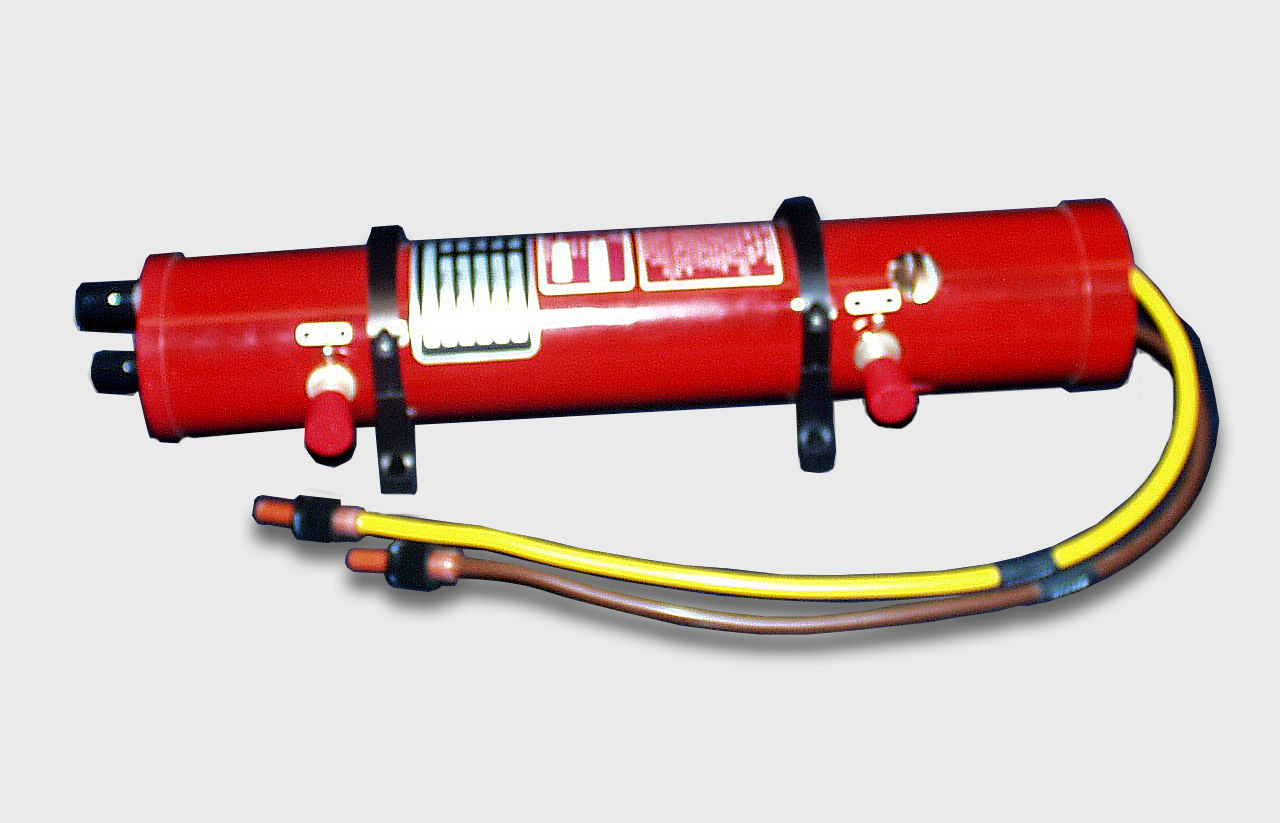

| C-Band TWT VTC5262B1K | 5.40 | 5.90 | 6.00 | 20 | 15 | VTC5262B1K |
