Ring-Loop TWTs
X-Band

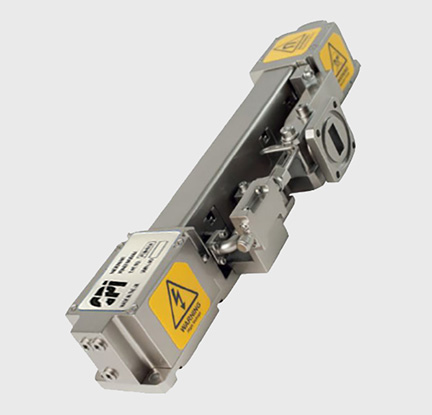

CPI EDB - TMD Technology Division manufactures X and Ku-band ring loop travelling wave tubes for
ground based and shipboard tracking radars and commercial weather radars.
Featuring:
- Ring-loop circuit design
Benefits:
- Proven products at L-Band, C-Band, S-Band, Ku-Band & X-Band
- Long life
- Reliable operation
Please contact CPI EDB to assist you with your ring-loop TWT needs;
[email protected]
X-Band
| Product Description | Frequency (Min) (GHz) | Frequency (Max) (GHz) | Peak Power Output (kW) | Duty Cycle (%) | Pulse Width (µs) | Model Number |
| X-Band 1 kW Ring Loop TWT PT6744 | 9.2 | 9.5 | 1 | 0.04 | 80 | PT6744 |
| X-Band 4 kW Ring Loop TWT PT6226 | 9.2 | 10.0 | 4 | 0.04 | 30 | PT6226 |
| X-Band 5.3 kW Ring Loop TWT PT6074 | 9.0 | 9.5 | 5.3 | 0.03 | 40 | PT6074 |
| X-Band 8 kW Ring Loop TWT PT6062 | 8.5 | 9.5 | 8 | 0.02 | 10 | PT6062 |
| X-Band 8 kW Ring Loop TWT PT6067 | 8.7 | 9.2 | 8 | 0.02 | 30 | PT6067 |
| X-Band 8 kW Ring Loop TWT PT6109 | 9.2 | 10.0 | 8 | 0.02 | 30 | PT6109 |
| X-Band 8.5 kW Ring Loop TWT PT6073 | 9.2 | 9.4 | 8.5 | 0.02 | 20 | PT6073 |
| X-Band 9 kW Ring Loop TWT PT6156 | 9.0 | 10.0 | 900 | 0.035 | 40 | PT6156 |
